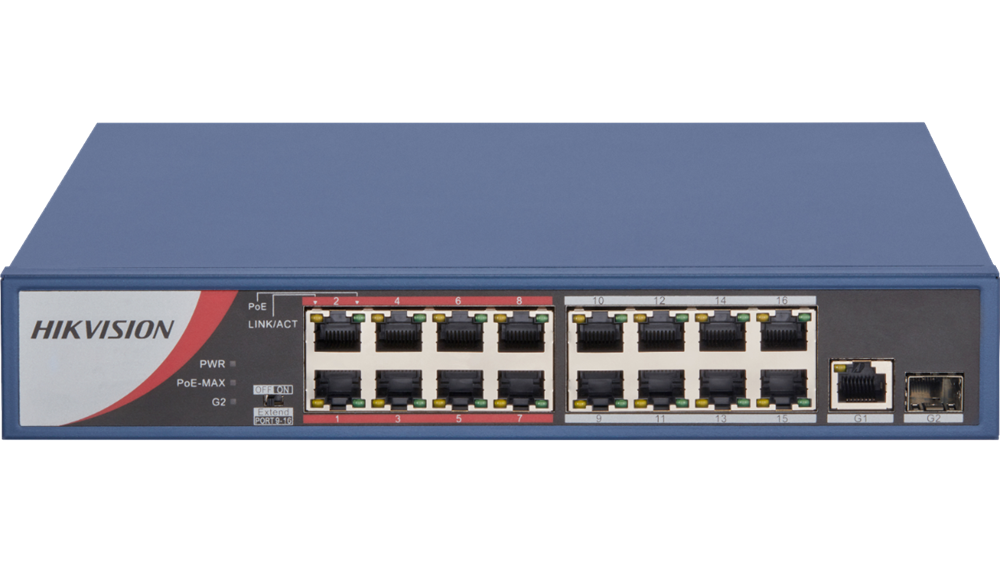

HİKVİSİON DS-3E0318P-E/M(B) 16 KANAL POE, 1 GE UPLİNK, 1 SFP TOPLAM 130W POE SWİTCH

  • 0.0 - 0 Yorum var.
  • Ürün Kodu : DS-3E0318P-E/M(B) 16 KANAL POE, 1 GE UPLİNK, 1 SFP TOPLAM 130W POE SWİTCH
  • Marka : HİKVİSİON
DS-3E0318P-E/M(B) 16 KANAL POE, 1 GE UPLİNK, 1 SFP TOPLAM 130W POE SWİTCH
  • Stokta Var

Sınırlı Sayıda Stok !

  • PoE Power Supply
  • PoE StandardIEEE 802.3af, IEEE 802.3at
  • PoE Power Pin

    Ports for long-distance transmission (9-16) support 8-core power supply, Ethernet cable 1/2/3/6 and 4/5/7/8 provide simultaneous power supply.

    Ports for close-range transmission (1-8) support 4-core power supply, Ethernet cable 1/2/3/6 provide power supply.

  • PoE PortPorts 1 to 16
  • Max. Port Power30 W
  • PoE Power Pudget130 W
  • Max. Power Consumption150 W
  • Network Parameters
  • Port Number16 × 100 Mbps PoE ports, 1 × 1000 Mbps RJ45 port, and 1 × 1000 Mbps SFP fiber optical port
  • Port TypeRJ45 port, full duplex, MDI/MDI-X adaptive
  • StandardIEEE 802.3, IEEE 802.3u, IEEE 802.3x
  • Forwarding ModeStore-and-forward switching
  • Working ModeStandard mode (default); Extend mode
  • High Priority PortsPorts 1 to 8
  • Ports For Long-Distance TransmissionPorts 9 to 16
  • MAC Address Table4 K
  • Switching Capacity7.2 Gbps
  • Packet Forwarding Rate5.356 Mpps
  • Internal Cache2.75 Mbits
  • General
  • ShellMetal material
  • Gross Weight2.58 kg (5.69 lb)
  • Net Weight1.8 kg (4.0 lb)
  • Dimension (L × H × D)266 mm × 44.5 mm × 220.8 mm (10.5” × 1.8” × 8.7”)
  • Operating Temperature-10 °C to 55 °C (14 °F to 131 °F)
  • Storage Temperature-40 °C to 85 °C (-40 °F to 185 °F)
  • Operating Humidity5% to 95% (no condensation)
  • Storage Humidity5% to 95% (no condensation)
  • Power Supply100 to 240 VAC, 50/60 Hz, Max. 2.5 A
  • Power Consumption In Idle20 W
  • Approval
  • EMCFCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 55024: 2010 +A1: 2015); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 6, 2016)
  • SafetyUL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013)
  • ChemistryCE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
