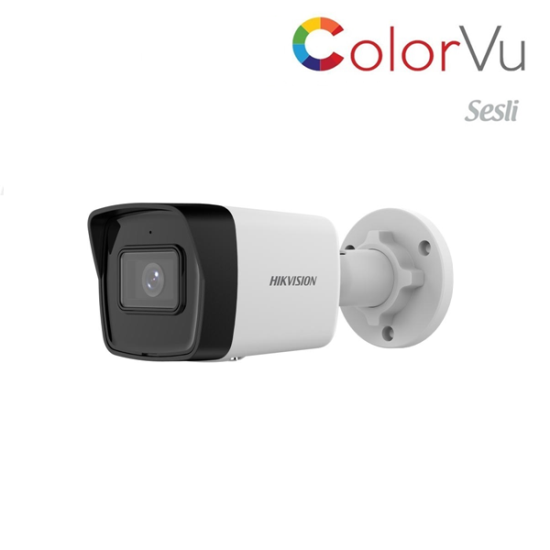

HİKVİSİON DS-2CD1041G2-LIUF 4 MP DAHİLİ SESLİ COLORVU IP BULLET KAMERA H.265+ 2.8 MM LENS

0.0 - 0 Yorum var.

Ürün Kodu : 1041301
Marka : HİKVİSİON

Stokta Var

Fiyat Sorunuz

Camera
Image Sensor
1/2.8" Progressive Scan CMOS
Max. Resolution
2560 × 1440
Min. Illumination
Color: 0.01 Lux @ (F2.2, AGC ON),B/W: 0 Lux with IR
Shutter Time
1/3 s to 1/100,000 s
Day & Night
IR cut filter
Angle Adjustment
Pan: 0° to 360°,tilt: 0° to 90°,rotate: 0° to 360°
Lens
Lens Type
Fixed focal lens, 2.8 and 4 mm optional
Focal Length & FOV
2.8 mm, horizontal FOV 104°, vertical FOV 57°, diagonal FOV 123°

4 mm, horizontal FOV 82°, vertical FOV 45°, diagonal FOV 98°

Lens Mount
M12
Iris Type
Fixed
Aperture
F2.2
Depth of Field
2.8 mm: 0.9 m to ∞

4 mm: 1.1 m to ∞

DORI
DORI
2.8 mm, D: 53 m, O: 21 m, R: 10 m, I: 5 m

4 mm, D: 67 m, O: 26 m, R: 13 m, I: 6 m

Illuminator
Supplement Light Type
IR,White Light
Supplement Light Range
IR: up to 20 m

White Light: up to 15 m

Smart Supplement Light
Yes
IR Wavelength
850 nm
Video
Main Stream
50 Hz:

20 fps (2560 × 1440),

25 fps (1920 × 1080, 1280 × 720)

60 Hz:

20 fps (2560 × 1440),

24 fps (1920 × 1080, 1280 × 720)

Sub-Stream
50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)

60 Hz: 24 fps (1280 × 720, 640 × 480, 640 × 360)

Video Compression
Main stream: H.265+/H.265/H.264+/H.264,

Sub-stream: H.265/H.264/MJPEG

Video Bit Rate
32 Kbps to 8 Mbps
H.264 Type
Baseline Profile,Main Profile,High Profile
H.265 Type
Main Profile
Bit Rate Control
CBR,VBR
Region of Interest (ROI)
1 fixed region for main stream
Audio
Audio Type
Mono sound
Environment Noise Filtering
Yes
Audio Sampling Rate
8 kHz/16 kHz
Audio Compression
G.711ulaw/AAC-LC
Audio Bit Rate
64 Kbps (G.711ulaw)/16 to 64 Kbps (AAC-LC)
Network
Protocols
TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTCP, RTSP, NTP, IGMP, IPv4, IPv6, UDP, QoS, SNMP, DDNS
API
ONVIF (Profile S, Profile T),ISAPI,SDK
Security
Password protection, complicated password, watermark, basic and digest authentication for HTTP, WSSE and digest authentication for Open Network Video Interface, security audit log, host authentication (MAC address)
Simultaneous Live View
Up to 6 channels
User/Host
Up to 32 users

3 user levels: administrator, operator, and user

Client
iVMS-4200,Hik-Connect
Web Browser
Local service: Chrome 80+, Firefox 80+, Edge 89+, IE 11
Image Settings
Saturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software or web browser
Wide Dynamic Range (WDR)
Digital WDR
SNR
≥ 52 dB
Privacy Mask
1 programmable polygon privacy mask
Day/Night Switch
Day,Night,Auto,Schedule
Image Enhancement
BLC,HLC,3D DNR
Interface
Ethernet Interface
1 RJ45 10 M/100 M self-adaptive Ethernet port
On-Board Storage
NA

Built-in Microphone
Yes,1 built-in microphone
Reset Key
NA

Event
Basic Event
Motion detection (support alarm triggering by specified target type (human)), exception
Linkage
Send email, notify surveillance center, trigger capture
General
Power
12 VDC ± 25%, 0.42 A, max. 5 W, Ø5.5 mm coaxial power plug, reverse polarity protection,

PoE: IEEE 802.3af, Class 0, max. 6.5 W

Material
Plastic
Dimension
138.8 mm × 60.9 mm × 57.9 mm (5.5 × 2.4\" × 2.3\")"

Package Dimension
163 mm × 75 mm × 75 mm (6.4" × 3.0" × 3.0")
Approx. 175 g (0.4 lb.)
With Package Weight
Approx. 250 g (0.55 lb.)

Storage Conditions
-30 °C to 45 °C (-22 °F to 113 °F). Humidity 95% or less (non-condensing)
Startup and Operating Conditions
-30 °C to 45 °C (-22 °F to 113 °F). Humidity 95% or less (non-condensing)
Language
English, Ukrainian
General Function
Heartbeat,anti-banding,mirror,password protection,password reset via email
Approval
EMC
CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021,

KC: KN32: 2015, KN35: 2015

Safety
CB: IEC 62368-1: 2014+A11,

CE-LVD: EN 62368-1: 2014/A11: 2017

Environment
CE-RoHS: 2011/65/EU,

WEEE: 2012/19/EU,

Reach: Regulation (EC) No 1907/2006

Protection
IP67: IEC 60529-2013
